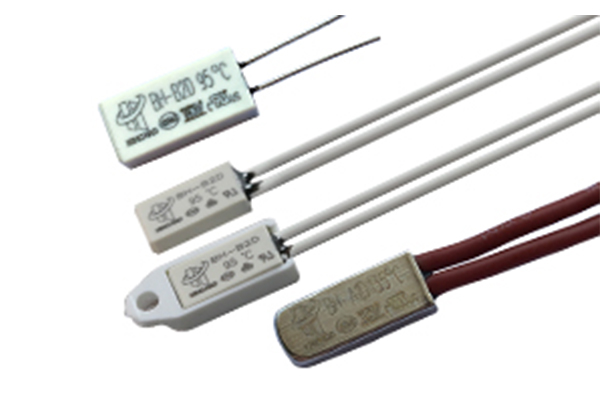

BH series thermostat / Miniature thermal protector / Rechargeable battery thermostat
1.     BH series thermostat’s Principle and structure
BW & BH series that can protect against over-current and over-temperature are sealed firmly, small internal resistance, no noise and reset automatically. When current through bimetal that are sensitive to temperature and current, the status of the bimetal will be changed by over-temperature or over-current to cut off circuit or switch on circuit. BH series are safer than normal protectors, as there is no temperature effect lag under condition of sudden big current.
2.     BH series thermostat’s Specification
2.1.  Electrical Rating:
a.     DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A for BH series
b.    DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A for BH-TB02 series
2.2.  Open temperature: (30~150)±5°C; 5°C a step.
2.3.  Reset temperature: 2/3 of the action temperature with tolerance of ±15°C. Reset temperature can also be provided according to customers' requirement.

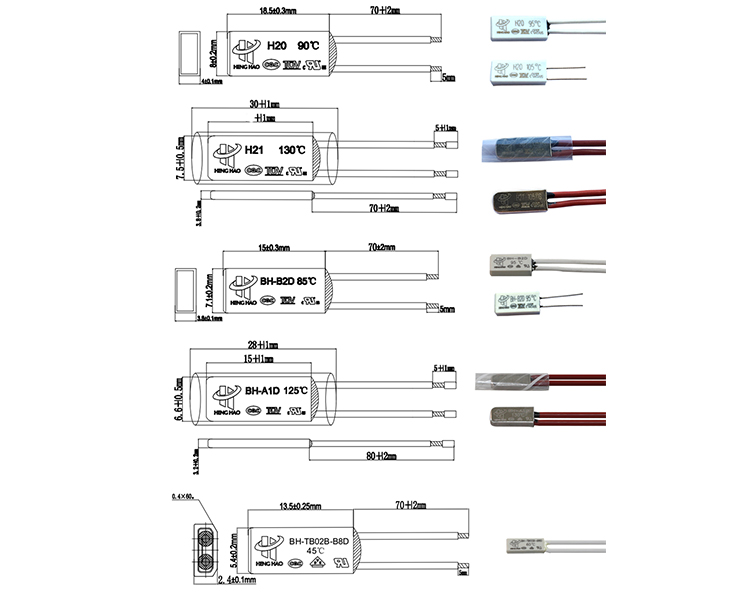

2.4.  Dimension


3.     BH series thermostat’s Application and Instruction
BH series thermal protectors ,effective reliable security protector and alarm devices, are widely used in various types 1.5 horsepower motors, lighting device, inverter welding machine, switch power, rechargeable battery pack, fluorescent lamp ballasts, portable power tools, electric appliances and other electric equipment to prevent from over-current & over-heating caused by abnormal work status. Enforced types that can withstand pressure of 3.5MPa are fit for build-in-installation of plastic coated motor.



The product UL,CQC,VDE and RoHS certification approval.

UL:E487478

TUV:B160592241002 Rev.01

CQC16002142880 PLASTIC CASE

CQC16002142881  METAL CASE
