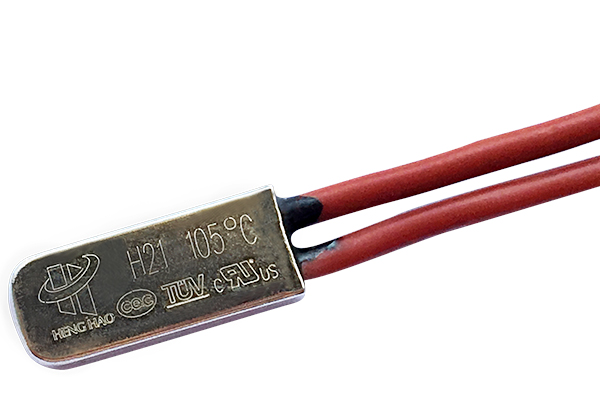

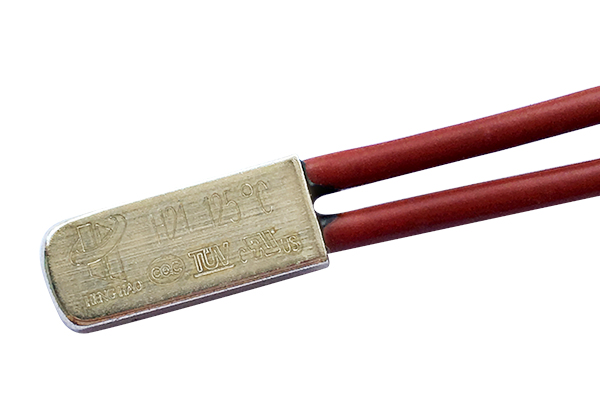

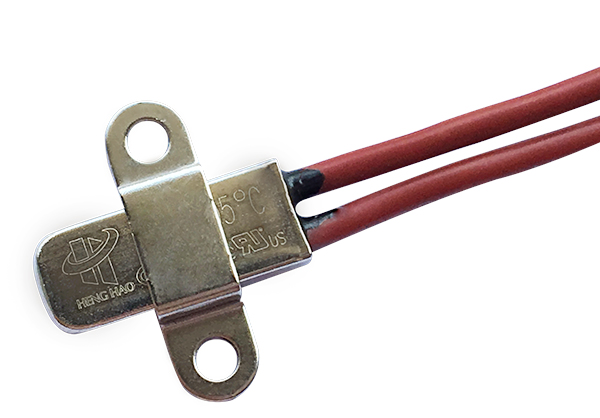

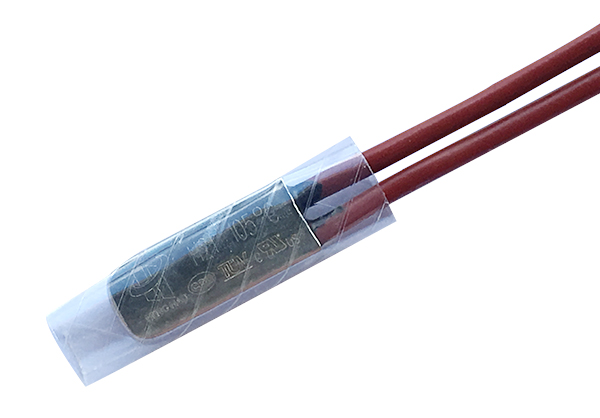

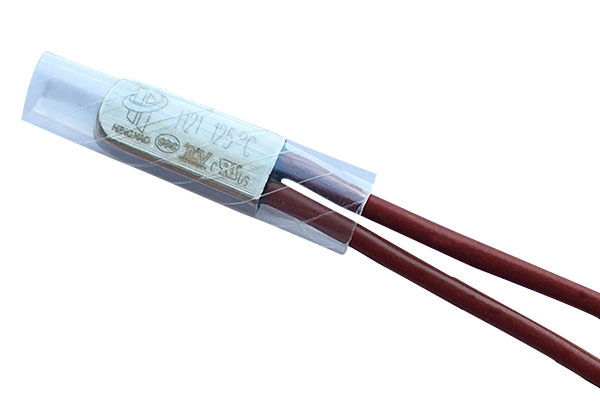

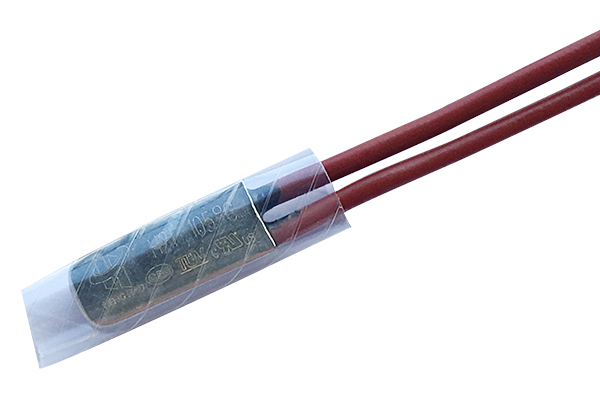

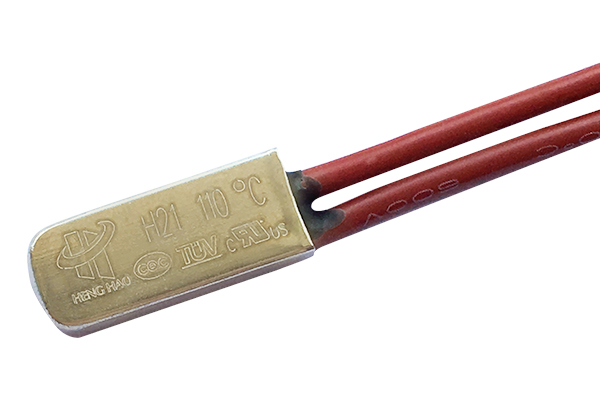

H21 metal case thermal protector

H21series is applicable to chargeable battery, ballast, massager, micro motor, transformer, electric tools, heat electric appliance and instrument etc.

Contacthenghao_cherry@163.com
Buy now

BW series thermostat / KSD9700 thermal protector / BW9700 temperature protector
1.     H20,H21 series thermostat’s Principle and structure
H20,H21serial universal and enhanced protectors with large metal casing are composed of the thermal conductive metal casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. In case of abnormal operation, along with the increase of the environment temperature to the set value, the bimetallic parts perform quick action, open the contact point, and disconnect the circuit. When the device is cooled to the temperature for safe operation, the contact point will automatically closes and recover normal operation.
2.     H20,H21series thermal protector’s Specification
2.1. Switch type: normally closed, normally opened.
2.2. Operating Voltage / Current: AC250V / 5A; AC125V / 8A
2.3. Operating Temperature: 40~150℃ (one step for every 5°C)
2.4. Standard Tolerance: ±3°C / ±5°C / ±7°C
2.5. Reset temperature: operating temperature decrease by 15-45°C
2.6. Contact Closure resistance: ≤50mΩ
2.7. Insulation resistance: ≥100mΩ
2.8. Electric strength: AC1500V/1min free from phenomena of break down and flashover.
2.9. Service life: 10000 times

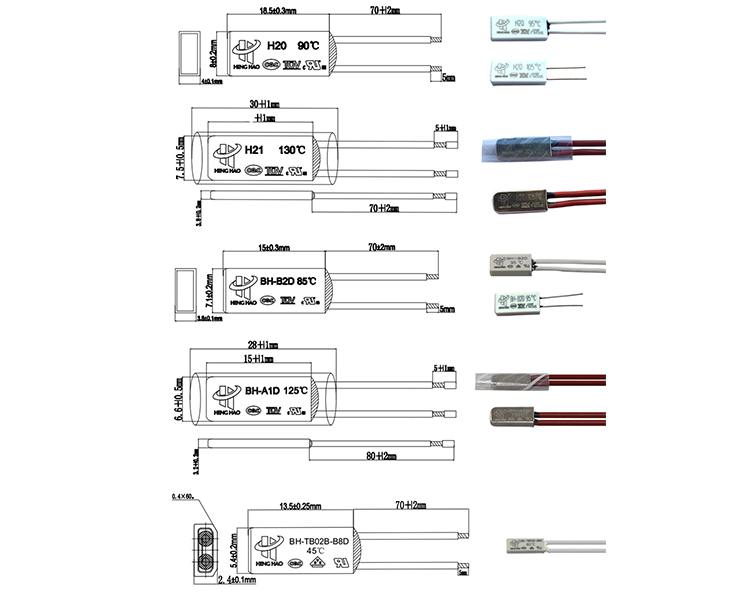

3.     H20,H21series thermal protector’s Dimension

Model Case Length width High Lead wire
H20 Plastic 18.5 8 4 #22 3266 white, or according client’ reques
H21 Metal 18.5 7.3 3.8 #20 3135 red, or according client’ request


4.     H20,H21series temperature protector’s Application
H20,H21series is applicable to chargeable battery, ballast, massager, micro motor, transformer, electric tools, heat electric appliance and instrument etc.



code

open temp.

reset temp.

code

open temp.

reset temp.

50

50+-5℃

≥30℃

110

110+-5℃

75+-12℃

55

55+-5℃

≥30℃

115

115+-5℃

80+-12℃

60

60+-5℃

40±10℃

120

120+-5℃

85+-12℃

65

65+-5℃

45±10℃

125

125+-5℃

90+-12℃

70

70+-5℃

50±10℃

130

130+-5℃

95+-12℃

75

75+-5℃

55±10℃

135

135+-5℃

100+-12℃

80

80+-5℃

60±10℃

   140

   140+-5℃

105+-12℃

85

85+-5℃

65±10℃

145

145+-5℃

110+-12℃

90

90+-5℃

70±10℃

150

150+-5℃

115+-12℃

95

95+-5℃

75±10℃

155

155+-5℃

120+-12℃

 100

100+-5℃

80±10℃

160

160+-5℃

125+-12℃

105

105+-5℃

70+-12℃

or according to client's request.

The product UL,CQC,TUV and RoHS certification approval.

UL:E487478

TUV:B160592241002 Rev.01

 CQC16002142880  plastic case

CQC:16002142881 metal case
