17AM temperature protector
1.1.Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
1.2.Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles
1.3.Operating temperature range: 50-180°C
1.4.Temperature tolerance: ±2°C±3°C±5°C
1.5.Reset temperature: 10~45 degrees in off temperature decline.
1.6.Working times: Over 10000 times
17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / instead of KLIXON 17AM thermal protector
1. 17AMH thermostat’s Principle and structure

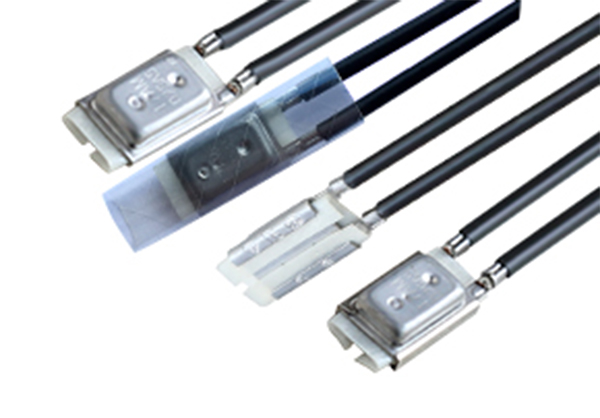

17AMis an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.
2. 17AM thermal protector’s Specification
2.1.Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
2.2.Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles
2.3.Operating temperature range: 50-180°C
2.4.Temperature tolerance: ±2°C±3°C±5°C
2.5.Reset temperature: 10~45 degrees in off temperature decline.
2.6.Working times: Over 10000 times
2.7.Code syste
17AM XXX A / B 5 A,B,C,D………..Z
(17AMH): The number of product series
(XXX): Trip off temperature in °CCode
(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction
(5): OFF Temperature Tolerance Code
(A, B, C, D………..Z): Different type of connecting wire
2.8.Trip off temperature in °CCode
| Degrees°C | Code | Degrees°C | Code | Degrees°C | Code | Degrees°C | Code |
| 55°C | 018 | 90°C | 025 | 125°C | 032 | 160°C | 039 |
| 60°C | 019 | 95°C | 026 | 130°C | 033 | 165°C | 040 |
| 65°C | 020 | 100°C | 027 | 135°C | 034 | 170°C | 041 |
| 70°C | 021 | 105°C | 028 | 140°C | 035 | 175°C | 042 |
| 75°C | 022 | 110°C | 029 | 145°C | 036 | 180°C | 043 |
| 80°C | 023 | 115°C | 030 | 150°C | 037 | ||
| 85°C | 024 | 120°C | 031 | 155°C | 038 |
2.9.Product Drawing
3. 17AM temperature protector’s Application
17AM thermal protectoris applicable to all kinds of Motor, commentator for fluorescent lamp, transformer, Laminator, lamps and lighting, transformers,cover sealing machine & various of household appliances
4. 17AM thermostat’s A/°Cand A/T Graph:
The product UL,CQC,VDE and RoHS certification approval.
