17AM Temperature protector

17AM thermal protector is applicable to all kinds of Motor, commentator for fluorescent lamp, transformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances

Contacthenghao_cherry@163.com
Buy now

17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / instead of KLIXON 17AM thermal protector
1.     17AMH thermostat’s Principle and structure
17AM is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.
2.     17AM thermal protector’s Specification
2.1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
2.2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles
2.3. Operating temperature range: 50-180°C
2.4. Temperature tolerance: ±2°C±3°C±5°C
2.5. Reset temperature: 10~45 degrees in off temperature decline.
2.6. Working times: Over 10000 times
2.7. Code syste
17AM  XXX  A / B  5  A,B,C,D………..Z
(17AMH): The number of product series
(XXX): Trip off temperature in °C Code
(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction
(5): OFF Temperature Tolerance Code
(A, B, C, D………..Z): Different type of connecting wire
2.8. Trip off temperature in °C Code

Degrees °C Code Degrees °C Code Degrees °C Code Degrees °C Code
55°C 018 90°C 025 125°C 032 160°C 039
60°C 019 95°C 026 130°C 033 165°C 040
65°C 020 100°C 027 135°C 034 170°C 041
70°C 021 105°C 028 140°C 035 175°C 042
75°C 022 110°C 029 145°C 036 180°C 043
80°C 023 115°C 030 150°C 037
85°C 024 120°C 031 155°C 038

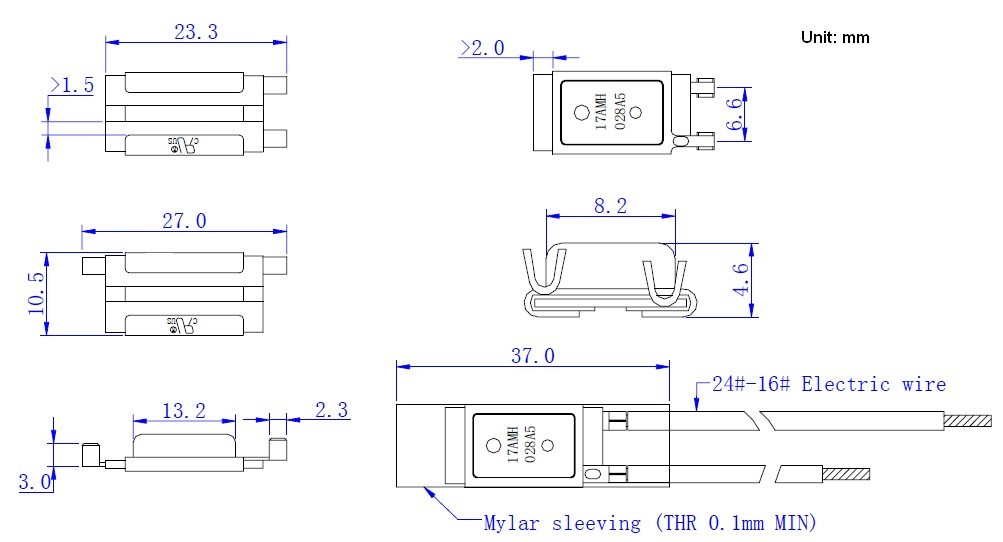

2.9. Product Drawing

3.     17AM temperature protector’s Application
17AM thermal protector is applicable to all kinds of Motor, commentator for fluorescent lamp, transformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances
4.     17AM thermostat’s A/°C and A/T Graph:

The product UL,CQC,VDE and RoHS certification approval.
