BW-ABJ Thermal protector

H21serial universal and enhanced protectors with large metal casing are composed of the thermal conductive metal casing bimetallic parts welded with silver alloy contact point conductive bracket insulation fixation stand fixed contact strip and heat resistance cable. In case of abnormal operation along with the increase of the environment temperature to the set value the bimetallic parts perform quick action open the contact point and disconnect the circuit. When the device is cooled to the temperature for safe operation the contact point will automatically closes and recover normal operation.
Contacthenghao_cherry@163.com
Buy now

BW series thermostat / KSD9700 thermal protector / BW9700 temperature protector
1.     H20,H21 series thermostat’s Principle and structure
H20,H21serial universal and enhanced protectors with large metal casing are composed of the thermal conductive metal casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. In case of abnormal operation, along with the increase of the environment temperature to the set value, the bimetallic parts perform quick action, open the contact point, and disconnect the circuit. When the device is cooled to the temperature for safe operation, the contact point will automatically closes and recover normal operation.
2.     H20,H21series thermal protector’s Specification
2.1. Switch type: normally closed, normally opened.
2.2. Operating Voltage / Current: AC250V / 5A; AC125V / 8A
2.3. Operating Temperature: 40~150℃ (one step for every 5°C)
2.4. Standard Tolerance: ±3°C / ±5°C / ±7°C
2.5. Reset temperature: operating temperature decrease by 15-45°C
2.6. Contact Closure resistance: ≤50mΩ
2.7. Insulation resistance: ≥100mΩ
2.8. Electric strength: AC1500V/1min free from phenomena of break down and flashover.
2.9. Service life: 10000 times

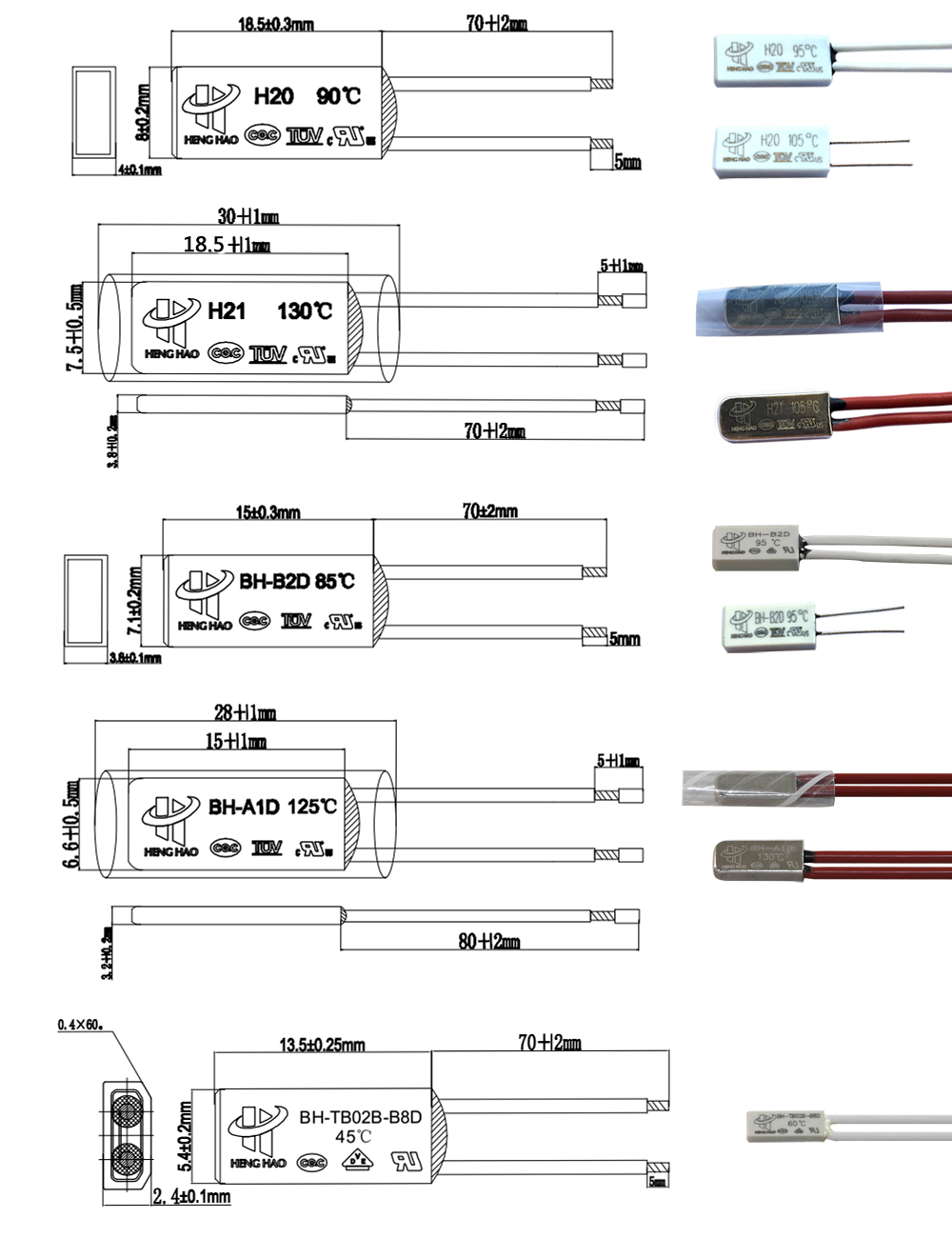

3.     H20,H21series thermal protector’s Dimension

Model Case Length width High Lead wire
H20 Plastic 18.5 8 4 #22 3266 white, or according client’ reques
H21 Metal 18.5 7.3 3.8 #20 3135 red, or according client’ request


4.     H20,H21series temperature protector’s Application
H20,H21series is applicable to chargeable battery, ballast, massager, micro motor, transformer, electric tools, heat electric appliance and instrument etc.

The product UL,CQC,TUV and RoHS certification approval.

Model

Size

Specification

BW-ABS

18.5*8*4mm

250V 5A;120V 8A 50-150C

20*8*4MM

250V 10A;120V 8A 50-150C

BW-ABJ

18.5*7.5*3.8MM

250V 5A;120V 15A 50-150C

20*7.5*3.8MM

250V 10A;120V 15A 50-150C



BW-ABJ thermal protector open temperature and reset temperature sheet



Code

open temp.

reset temp.

code

open temp.

reset temp.

50

50+-5℃

≥30℃

110

110+-5℃

75+-12℃

55

55+-5℃

≥30℃

115

115+-5℃

80+-12℃

60

60+-5℃

40±10℃

120

120+-5℃

85+-12℃

65

65+-5℃

45±10℃

125

125+-5℃

90+-12℃

70

70+-5℃

50±10℃

130

130+-5℃

95+-12℃

75

75+-5℃

55±10℃

135

135+-5℃

100+-12℃

80

80+-5℃

60±10℃

   140

   140+-5℃

105+-12℃

85

85+-5℃

65±10℃

145

145+-5℃

110+-12℃

90

90+-5℃

70±10℃

150

150+-5℃

115+-12℃

95

95+-5℃

75±10℃

155

155+-5℃

120+-12℃

 100

100+-5℃

80±10℃

160

160+-5℃

125+-12℃

105

105+-5℃

70+-12℃

or according to client's request

The BW-ABJ thermal protector have got the CQC TUV UL CUL and Rohs certificate

UL:E487478

TUV:B160592241002 Rev.01

CQC16002142880

CQC16002142881
